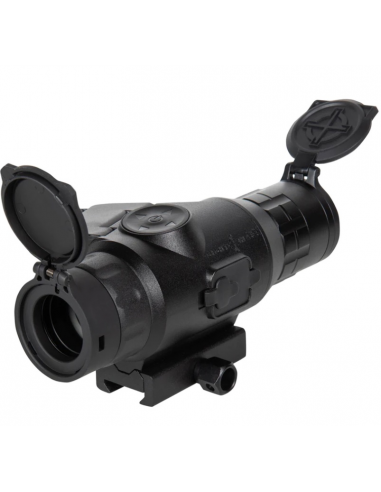

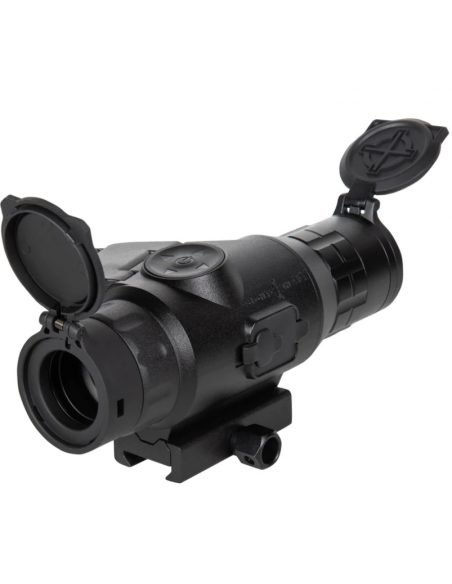

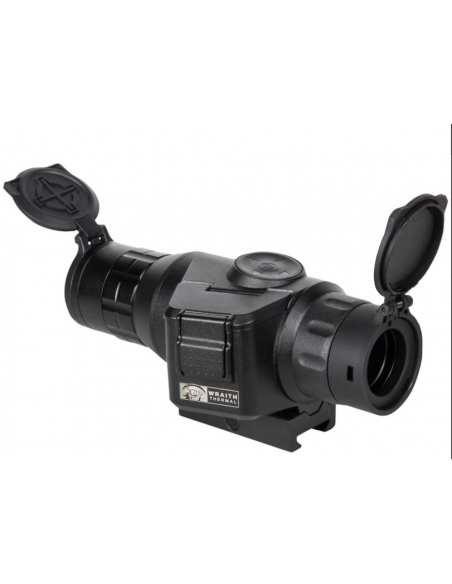

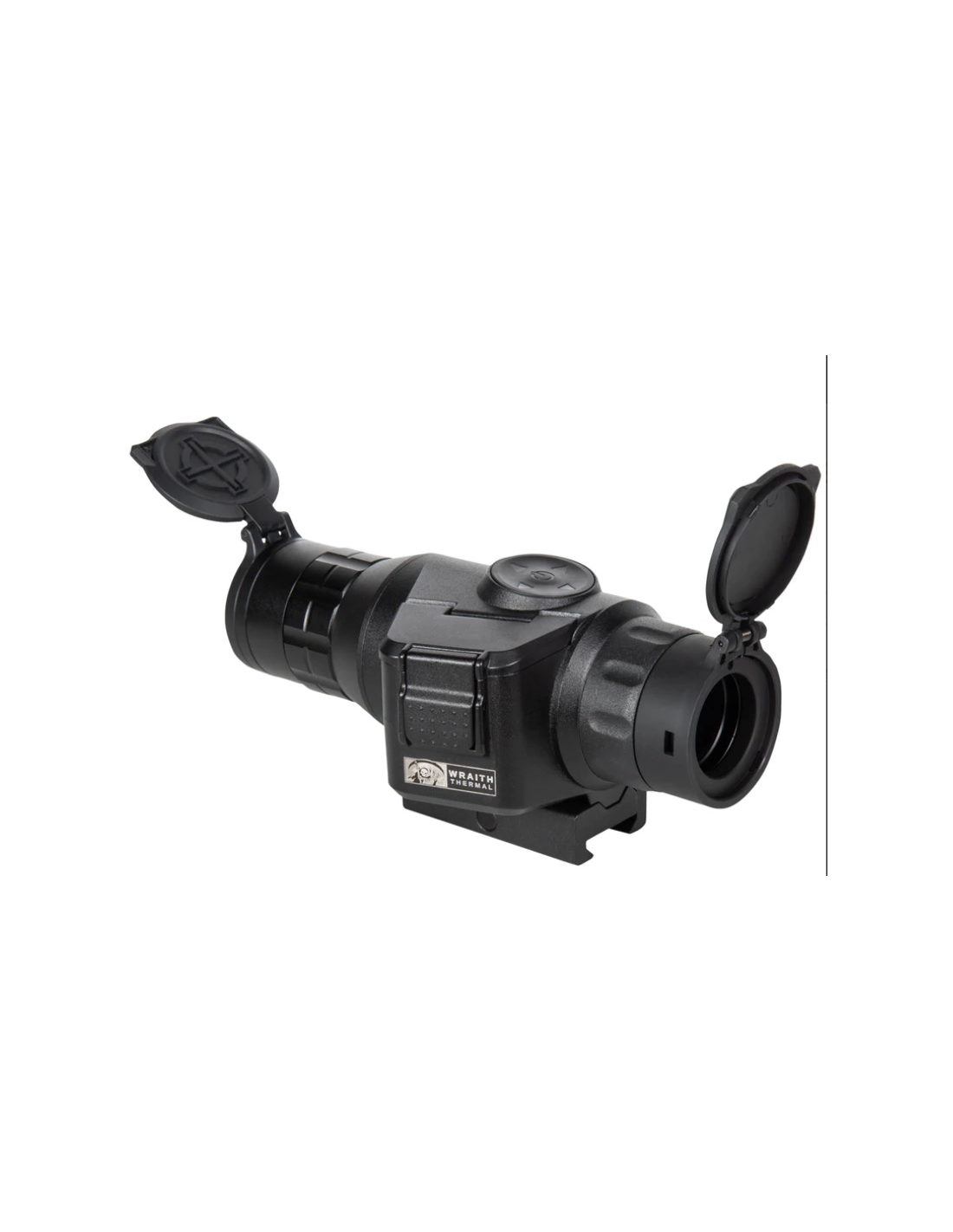

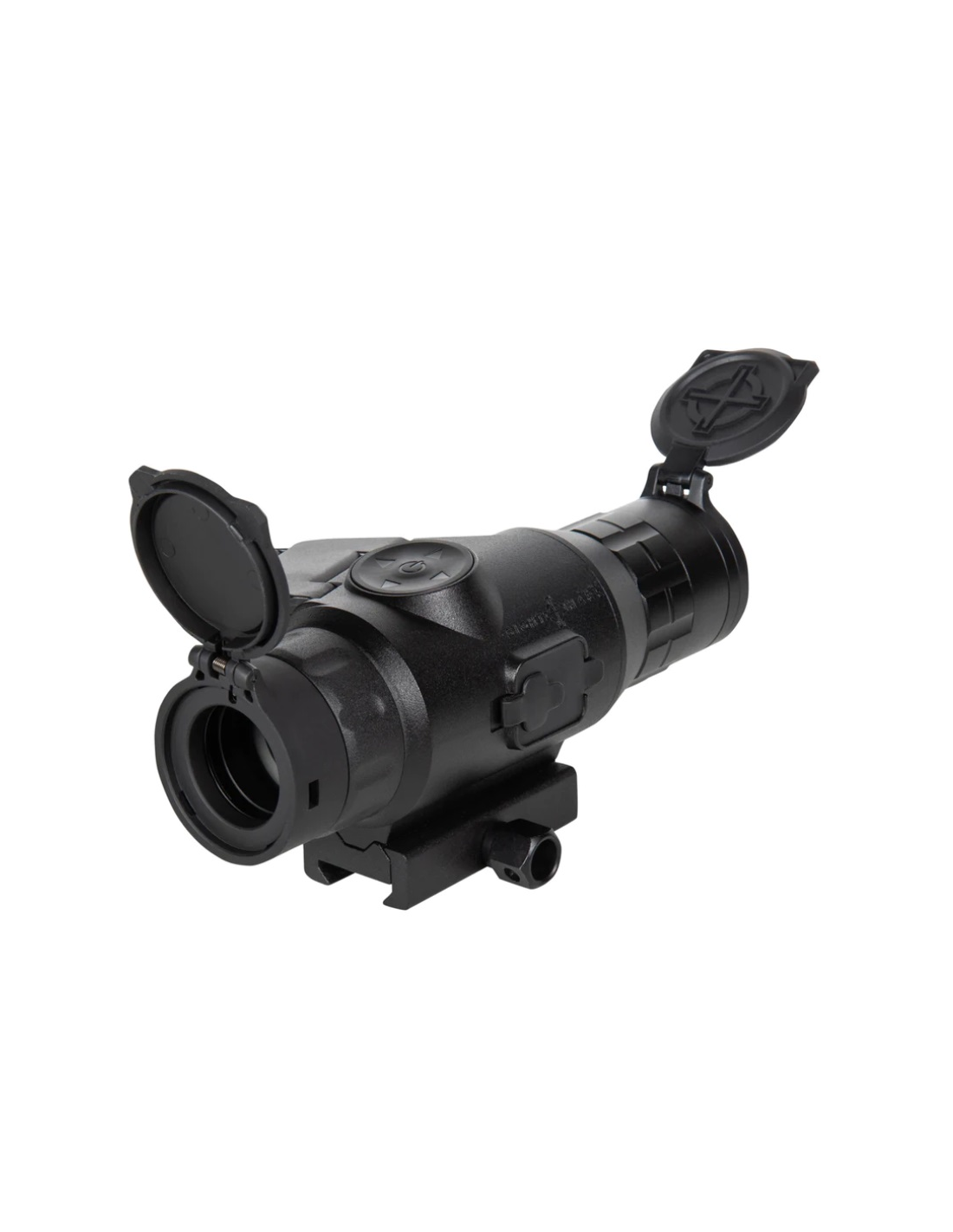

SIGHTMARK - WRAITH MINI 384X288 THERMAL RIFLESCOPE

MARCA: Sight mark


The Wraith Mini Thermal offers the same peerless quality of Sightmark’s Wraith Mini digital night vision models on a digital thermal riflescope. The new Wraith Mini Thermal comes equipped with a powerful 384x288 sensor resolution which enhances imaging algorithms to create a crisp picture, a 1024x768 OLED display, a built-in video recorder with sound to capture the best moments of a hunt and a battery life of 3.5 hours on video mode and 4.4 hours on preview mode, the Wraith Mini Thermal proves to be a durable thermal scope with enhanced imaging capabilities and a long battery life for the field.
With its 1350 meters detection range, 2x optical magnification and 1-8x digital zoom, the Wraith Mini Thermal is optimized for medium range engagements. Far from delicate, its durable aluminum housing and ability to resist temperatures from -20°C to 50°C as well as its USB charging capability make it great for rugged hunting environments.

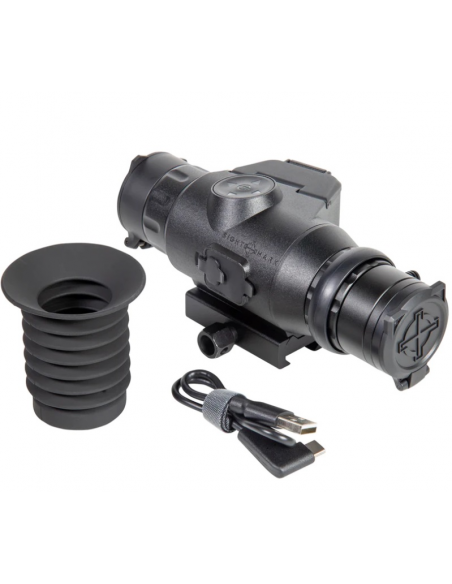

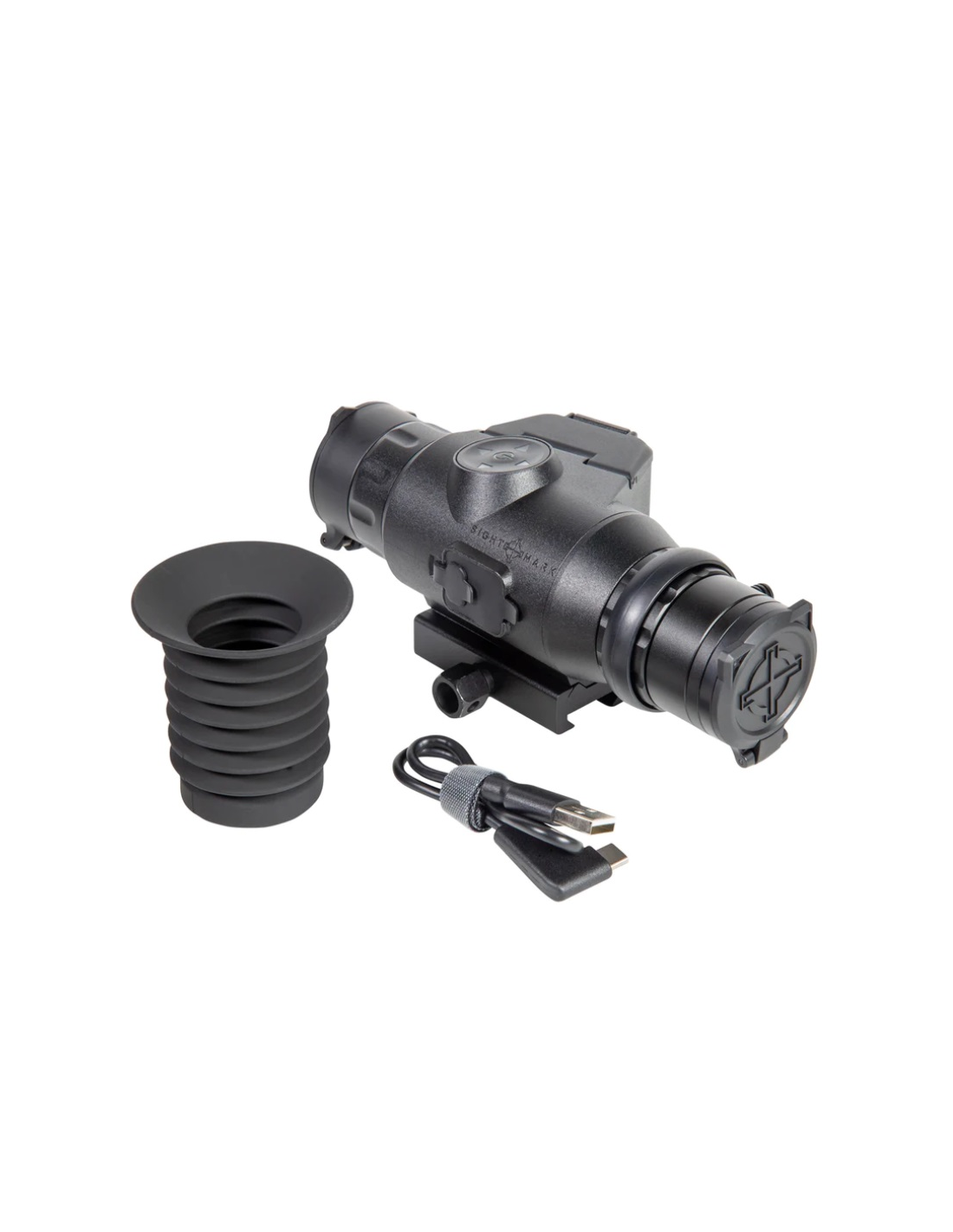

Included in Package
Flip-up Caps
Removable Throw Lever
Rubber Eyecup
2x CR123A Batteries
USB Cable
Battery Used
Type: 2x CR123A
Quantity: 2
Product Downloads
Product Manual - English
Product Manual - German
Product Manual - French
Product Manual - Spanish
Product Manual - Italian
Product Specifications
Features
384x288 Thermal Resolution
Lightweight and Compact
OLED Display, Built-in Recording w/ Sound

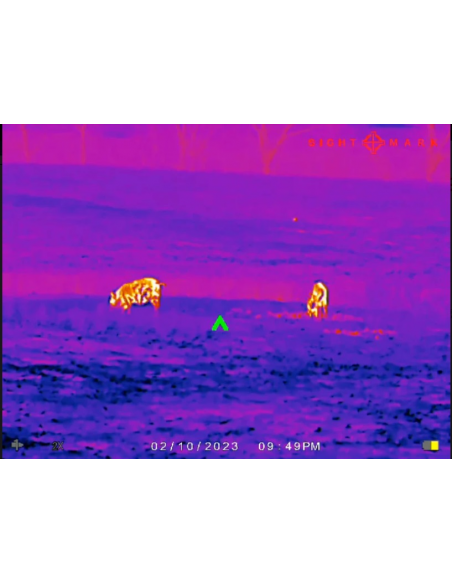

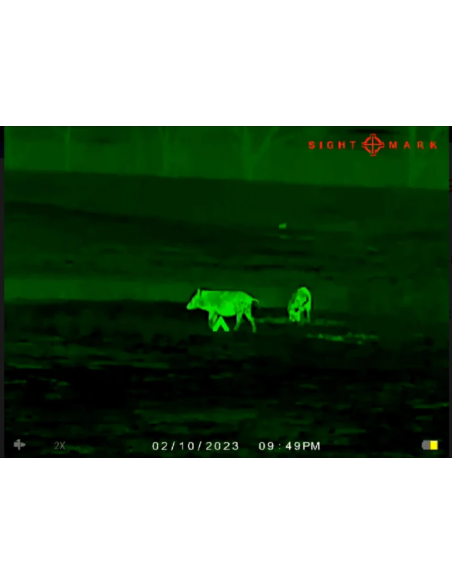

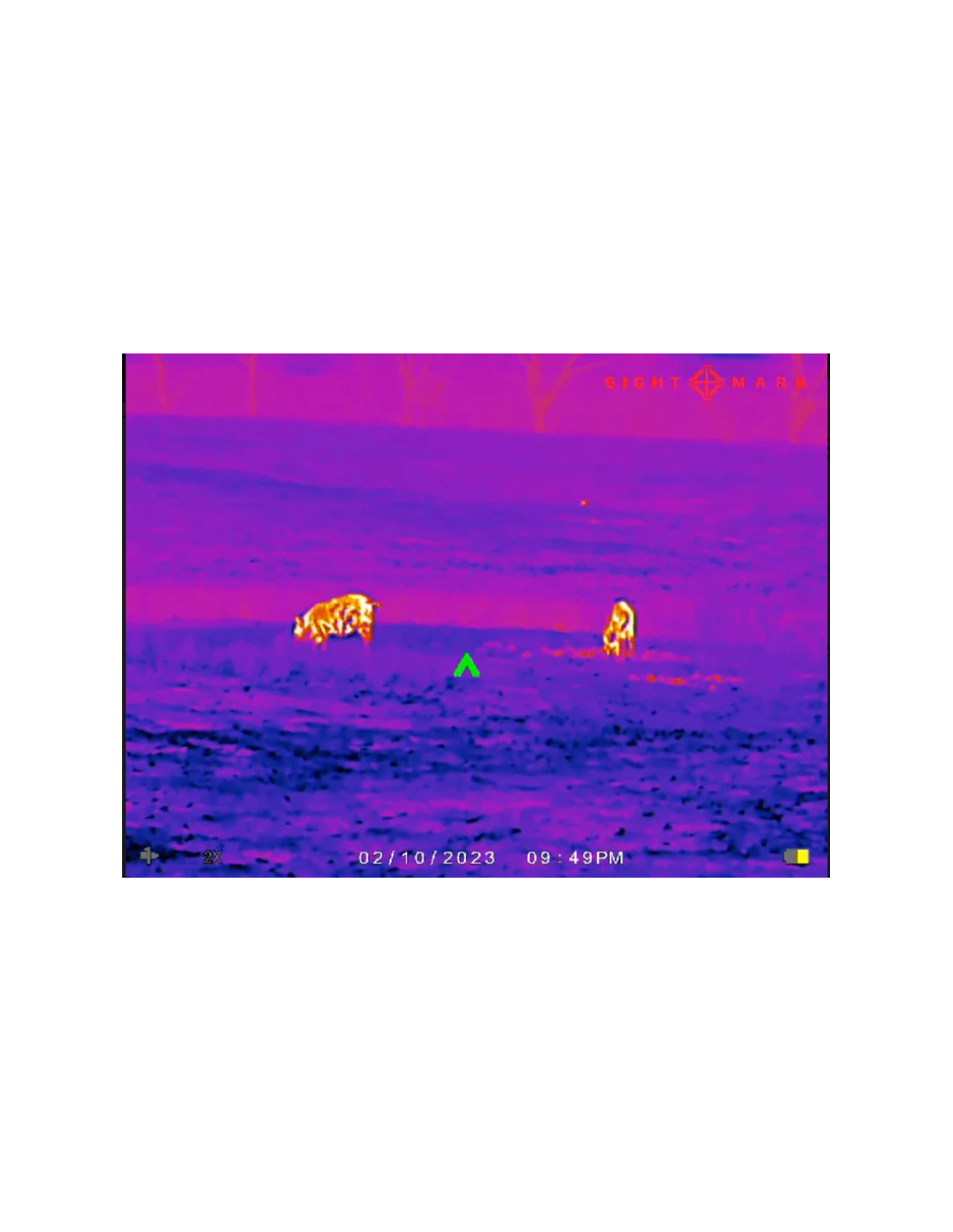

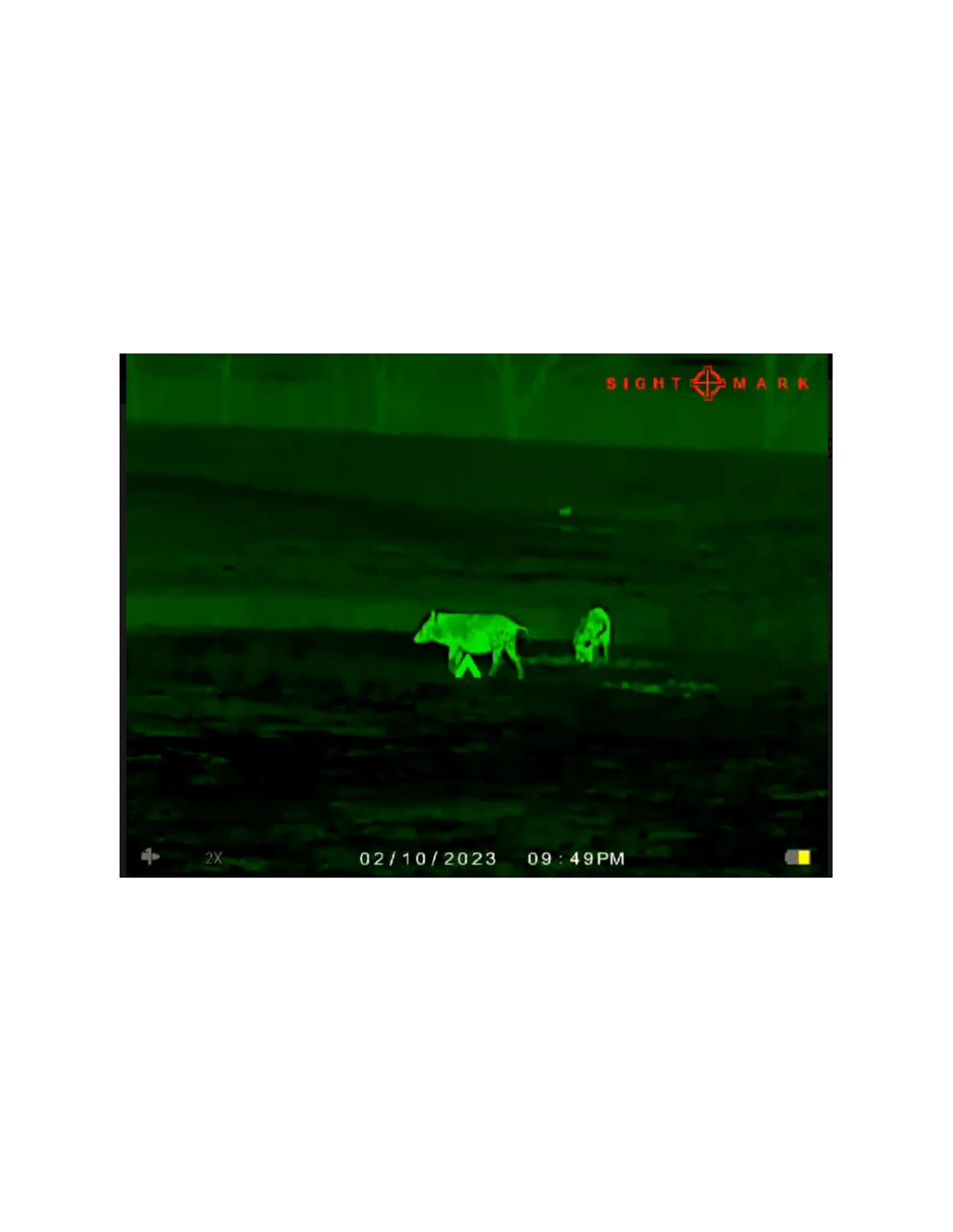

5 Color Palettes
9 Reticle Colors
10 Reticles
5 Weapon Profiles

Electronic components
Type of sensor    Thermal sensor
Sensor resolution, pixels     384x288
Display type    OLED
Display Resolution, pix.    1024x768
Built-In Video Recorder Availability    Yes
Maximum memory card supported, Gb    256
Pixel Pitch (µm)    17
Spectral Range (µm)    8-14
NEDT (50 Hz, 300 K, F/1) (mK)    40
Optical characteristics
Magnification     2-16x
Lens diameter, mm     35
Digital zoom     1-8x
Field of View,°, horizontal    13
Range of Detection
Detection Range (meters)    1350
Power Supply
Power Supply, v    6
Battery type    2x CR123A
Battery life    3.5Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply    5V via microUSB
Physical & operational characteristics
Body Material    Aluminum

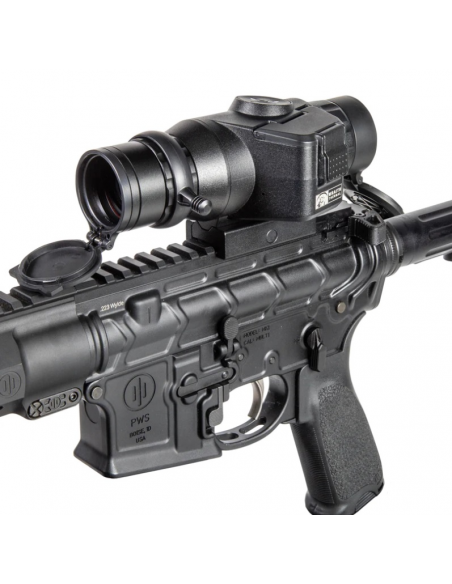

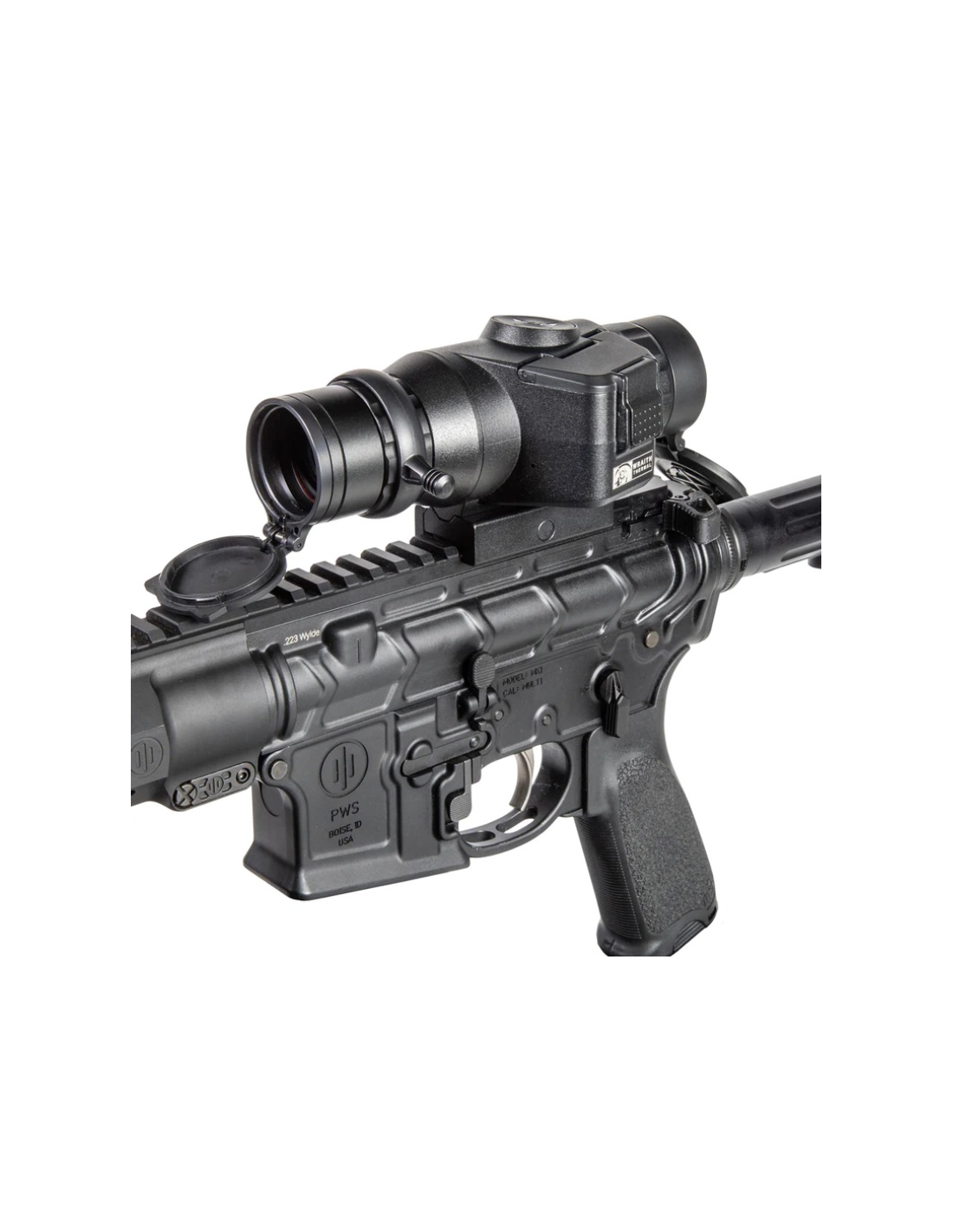

Accessory rail mount     Picatinny
Operating Temp,°F / C°    -4 - 144ºF / -20C - 50ºC
Length, in/mm (with flip up caps)    6.653 / 169
Width, in/mm    3.031 / 77
Height, in/mm    2.913 / 74
Weight (with batteries), oz/g    19.3 / 547
