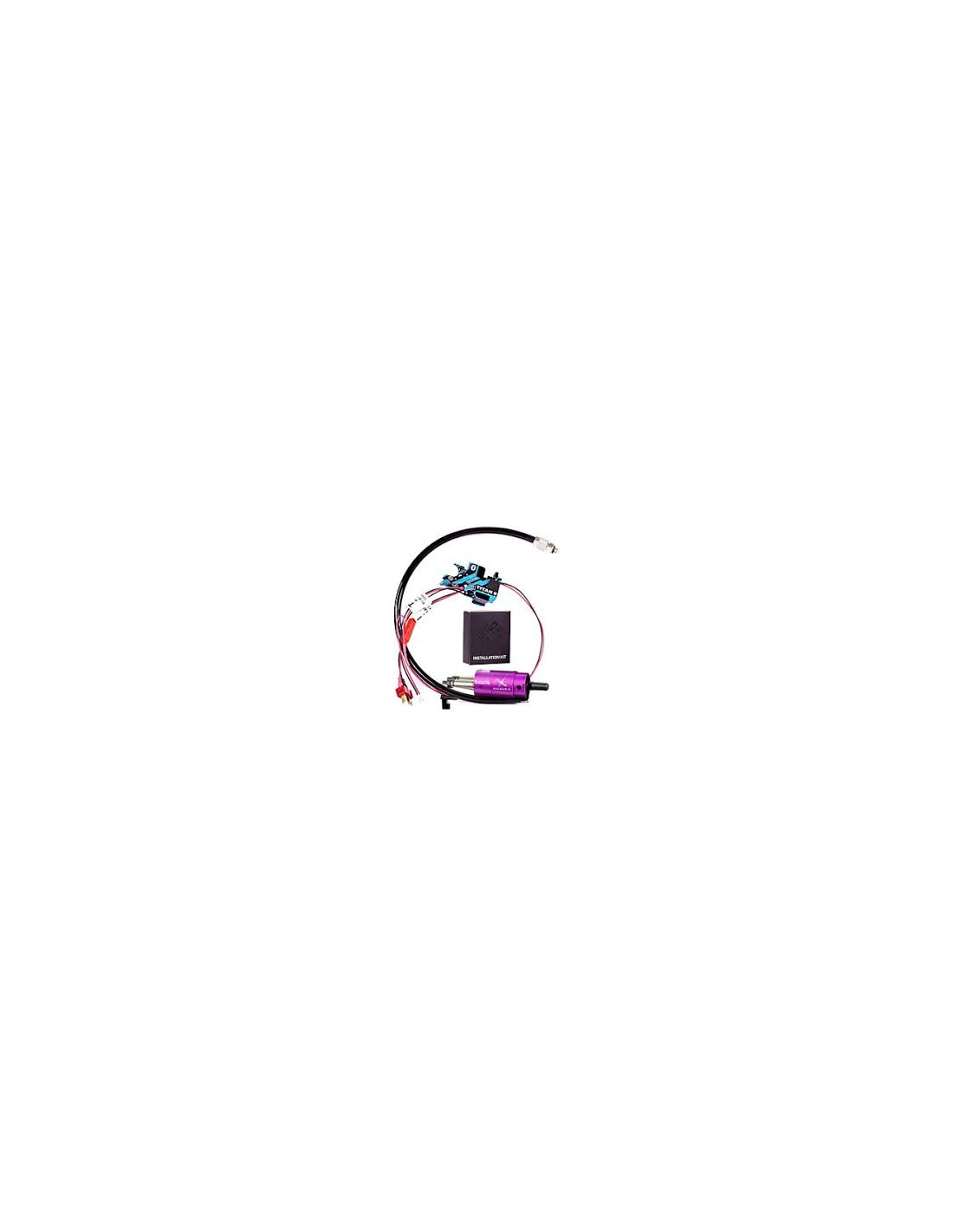

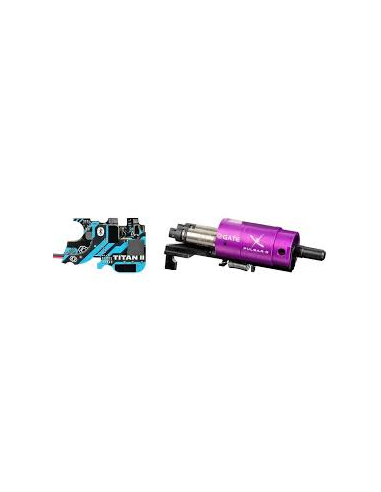

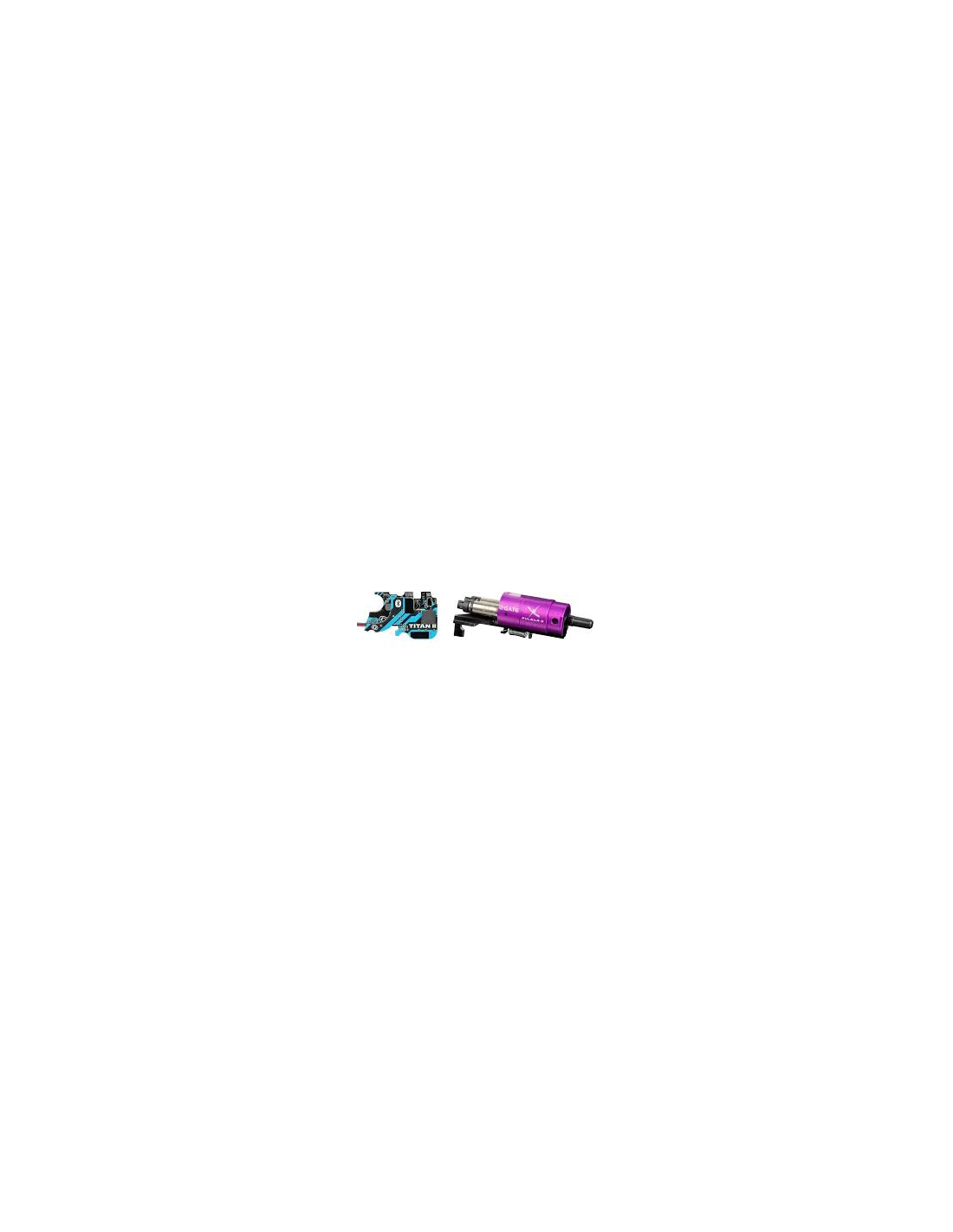

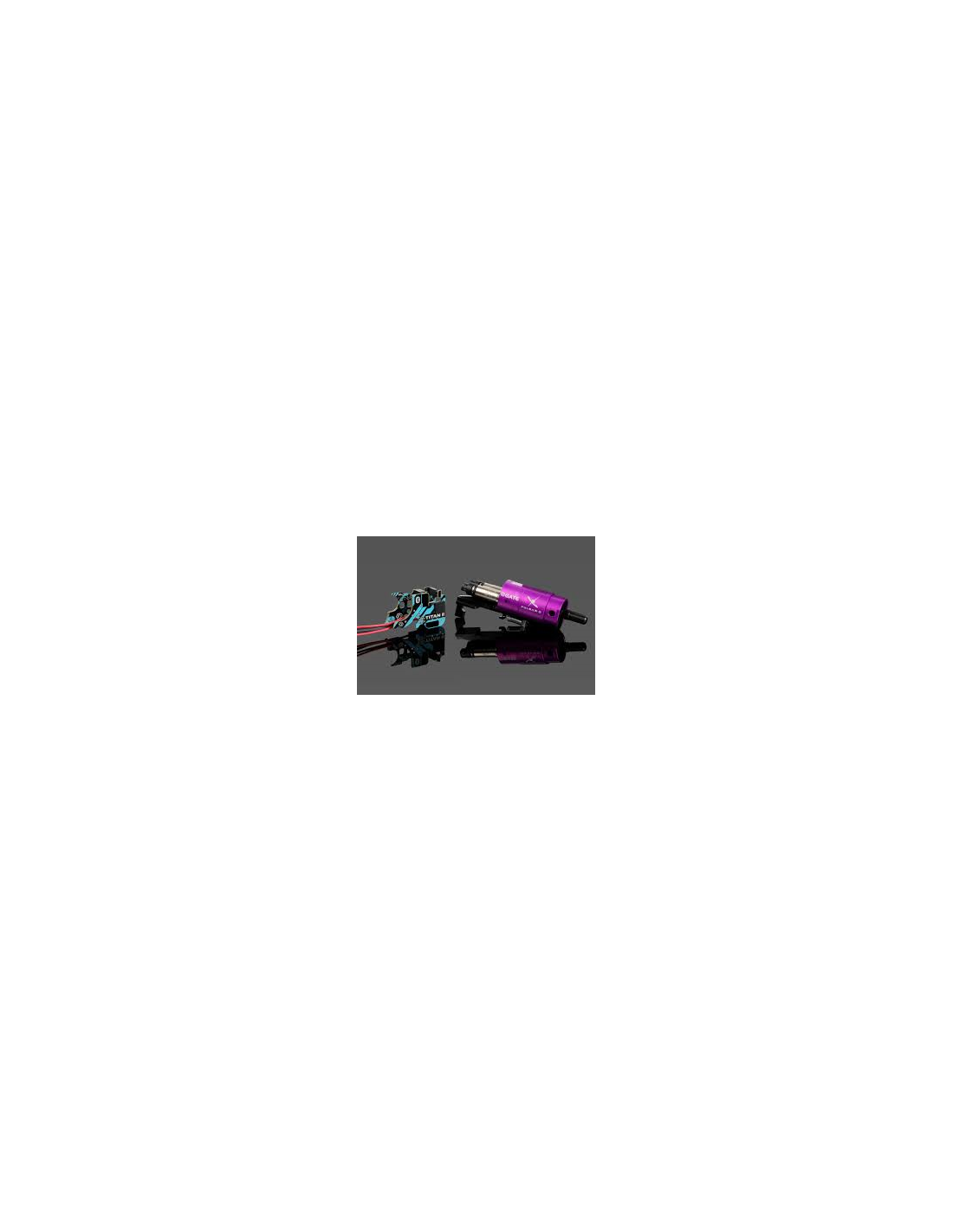

GATE - PULSAR D HPA Engine + TITAN II Bluetooth EXPERT - FRONT WIRED

PULSAR D HPA Engine (dual solenoid, closed-bolt) with TITAN II Bluetooth® EXPERT– thanks to optical sensors combined with HPA technology, you get an absurd trigger response never before seen in airsoft. Get insane muzzle velocities ranging from 250-650 FPS & ROF from 1-40 RPS for CQB, assault, and sniper replicas. Closed-bolt and the innovative feed system guarantee you a straight and repeatable BB trajectory even in full AUTO – every time. Engine calibration has never been easier – PULSAR D & TITAN II Bluetooth® is introducing innovative cycle synchronization automation. The most advanced and user-friendly GCS app lets you access a multitude of settings and configurations like binary trigger, trigger sensitivity, ROF – live via Bluetooth®. You can even use a remote trigger on your smartwatch. Install the world's smallest and most advanced dual solenoid valve HPA engine in replicas where previously not possible due to size constraints. Choose one of the five nozzles included or use a regular AEG one. Take your HPA replica into the future!

PULSAR D FEATURES

1. SIMPLE - Easy maintenance, thanks to a well thought-out design
2. VALUE FOR MONEY - State-of-the-art technology at the best price
3. COMPACT - Smallest dual solenoid valve closed-bolt HPA engine with innovative cycle synchronization

Bluetooth® ETU/FCU CONTROLLED - TITAN II Bluetooth® V2 gearbox drop-in ETU FCU mosfet AEG HPA – the first Bluetooth optical unit in an HPA replica

Very high resolution trigger ?sensor – up to 50 points of sensitivity in the first millimeter
Bluetooth® 5.2 – connectivity to other elements of the GATE ecosystem, e.g. STATUS, smartwatch
For the first time in HPA replicas configurable fire modes such as BINARY TRIGGER, BURST, etc.
Convenient GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
Constant access to software updates
AEG COMPATIBILITY - Compatible with AEG nozzles – 5 nozzle lengths included for MP5, M4/M16:

20.50mm
20.80mm
21.15mm
21.25mm
21.40mm
NO MID-CAP SYNDROME - Eliminated mid-cap syndrome thanks to high dimensional tolerance

ACCURACY - High accuracy due to the innovative BB feed system for HPA engines

STABILITY - FPS stability in full AUTO mode

ACCESSORIES - Use the multifunctional port to connect accessories such as the bolt-catch button, magazine sensor, tracer in the hop-Up chamber, electric magazine power supply


SPECIFICATIONS
The design and production of the device is based on harmonized standards.
Solenoid Voltage Range 5-8.4 V

Operating Pressure 60-140 PSI – high pressure only

Gas Consumption For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 0.7 PSI per shot

Dimensions with innovative cycle synchronization automation (Length x Diameter x Height) 102 mm x 25.4 mm x 38.5 mm

Dimensions (Length x Diameter x Height) 100 mm x 25.4 mm x 32 mm

Finished Product Weight 90 g

Operating Temperature Range min. -15° C, max. +50° C

Relative Humidity = 80%

Regulated ROF 1 to 40 RPS (BB feed correctness depends on magazine)

Velocity 250 – 650 FPS

Operation Mode Closed-Bolt / Open-Bolt

Pressure Range 60 do 140 PSI

TITAN II Bluetooth®
Supply Voltage Range 5-8.6 VDC

Rated Current 10 A

Current Consumption 27 mA

Low Power Mode 100 µA

Connectivity Bluetooth® 5.2 Low Energy

Dimensions (Length x Width x Thickness) 47.2 mm x 28.9 mm x 14.5 mm

Finished Product Weight 28.2 g

Operating Temperature Range min. -15° C, max. +50° C

Relative Humidity = 80%
