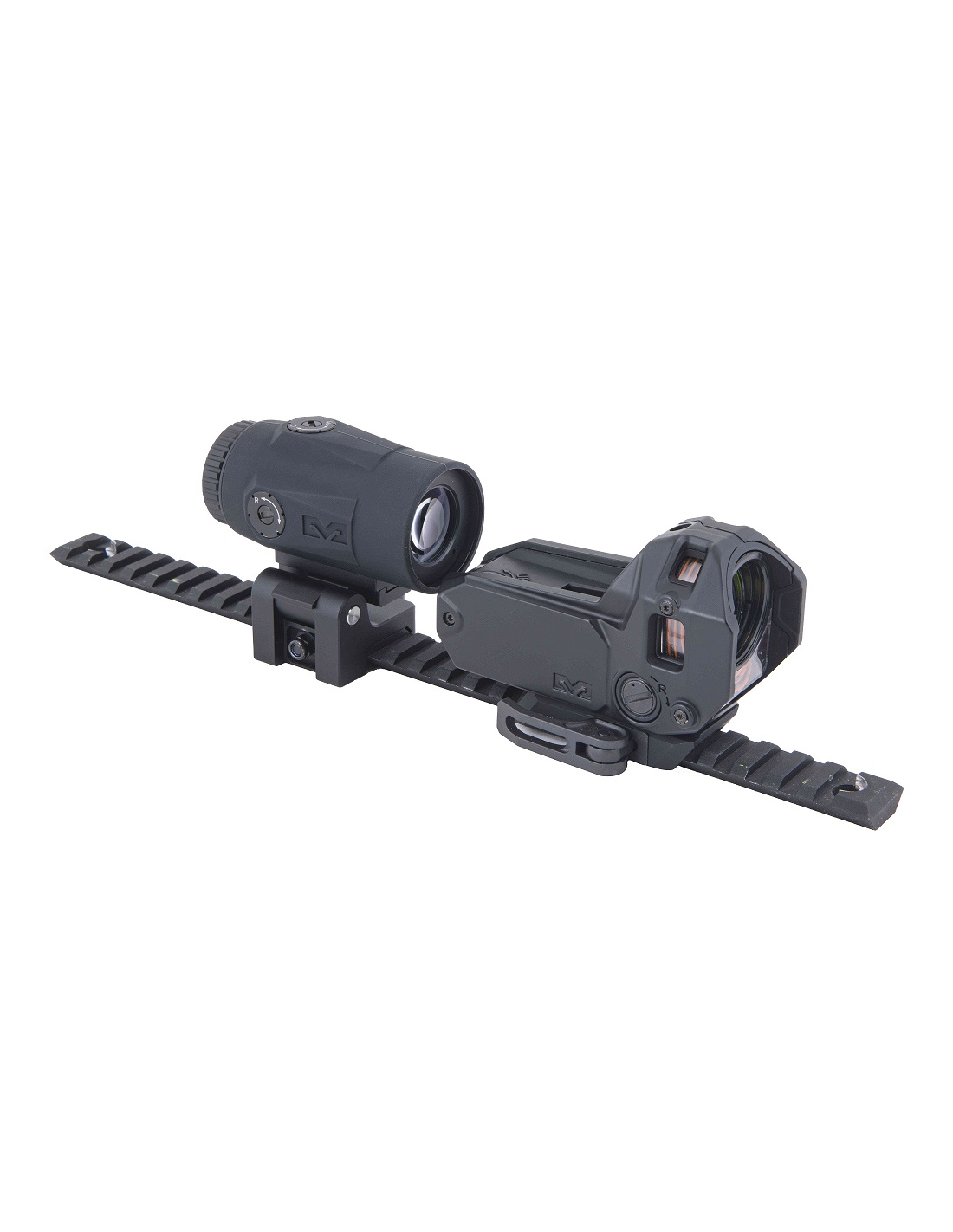

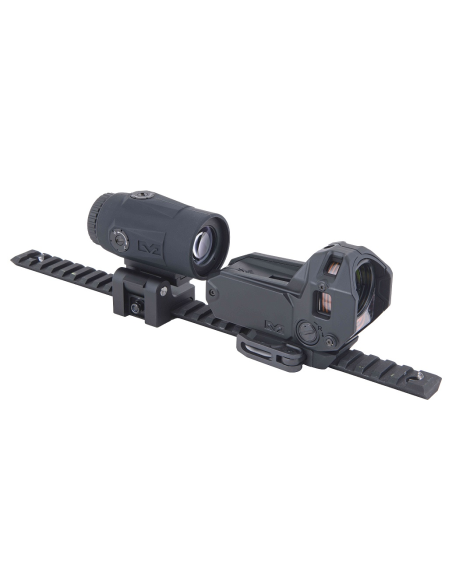

The Mepro MMX4 micro magnifiers is a compact, lightweight magnifier that will extend your effective range of your red dot or reflex sight. Weighing in at 6.9 oz. respectively they reduce the footprint, saving rail space and weight on your firearm.
Elevation and windage dials provide precise FOV line of sight alignment. A wide FOV enables rapid target acquisition with both eyes open which is ideal where agility, and speed are of the utmost importance.
The Mepro MMX4 micro magnifier attach to any MIL-STD-1913 rail, directly behind your optic. When not in use, the magnifier can be securely flipped out of the way.
DOWNLOAD
User Manual
PRODUCT PAGE
PRODUCT WARRANTY
Tech Spec
Magnification 4X
Objective diameter 24 mm
Exit Pupil 6 mm
Length 3.2" (82 mm)
Center Height 1.58" (40.3 mm)
Center Height with Riser 1.75" (44.7mm)
Net Weight with mount 10.23oz (290 g)
Eye Relief 2.65" (67.5 mm)
Angular Field of View 5.5°
Diopter adjustment +/- 2
W&E Travel Range = 60 MOA
Storage Temperature -22°F to 140°F (-30° to +60° C)
Working Temperature -4°F to 122°F (-20° to +50° C)
Submersion IPX7
Elevation and windage dials provide precise FOV line of sight alignment. A wide FOV enables rapid target acquisition with both eyes open which is ideal where agility, and speed are of the utmost importance.
The Mepro MMX4 micro magnifier attach to any MIL-STD-1913 rail, directly behind your optic. When not in use, the magnifier can be securely flipped out of the way.
DOWNLOAD
User Manual
PRODUCT PAGE
PRODUCT WARRANTY
Tech Spec
Magnification 4X
Objective diameter 24 mm
Exit Pupil 6 mm
Length 3.2" (82 mm)
Center Height 1.58" (40.3 mm)
Center Height with Riser 1.75" (44.7mm)
Net Weight with mount 10.23oz (290 g)
Eye Relief 2.65" (67.5 mm)
Angular Field of View 5.5°
Diopter adjustment +/- 2
W&E Travel Range = 60 MOA
Storage Temperature -22°F to 140°F (-30° to +60° C)
Working Temperature -4°F to 122°F (-20° to +50° C)
Submersion IPX7
